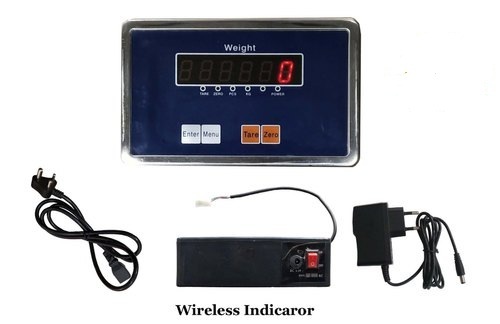

Yh-T3 Indicator

Product Description

proname :IN-YH-T3
Introduction
Weighing indicator YH-T3 adopts tri-integral A/D conversion technology, widely applied in weighing system equipped with 14 load cell.
Standard function
High precision A/D conversion with readability 30000
Able to auto adjust speed and range of digital filter
Able to display in power-saving mode
Protection for low battery
With built in rechargeable 6V/4AH battery
Optional of RS232 interface with selectable baud rate
Auto/manual accumulation
Able to display at 10-time enlargement (counts‰10000)
Able to lock displaying result
Switch between KG/LB
Technical parameter
A/D conversion method: Tri-integral
A/D conversion speed: ‰40 times/sec.
Max. A/D conversion: 720000
Input signal range: 0mV10mV
Input sensitivity: ‰1 V/e
Load cell excitation: DC 5V
Max. connection number of load cell: 4 at 350 ohm
Verified counts: 3000
Max. external counts:  30000
Division: 1/2/5/10/20/50 optional
Display: 6 bits LED, 6 status indications
Display range: -9999099990(d=10)
Serial communication(optional)
Optional standard:RS232C
Baud Rate:1200/2400/4800/9600 optional
Communication method:continuous sending method
Transmission distance‰30m
AC Power:AC 187-242V,49-51Hz
DC Power:built-in DC 6V/4Ah battery



WE PROVIDE ONLY USER MANUAL.

CHARGES EXTRA FOR TECHNICAL HELP / INSTALLATION HELP.

LEGAL METROLOGY STAMPING CHARGES ARE EXTRA.
