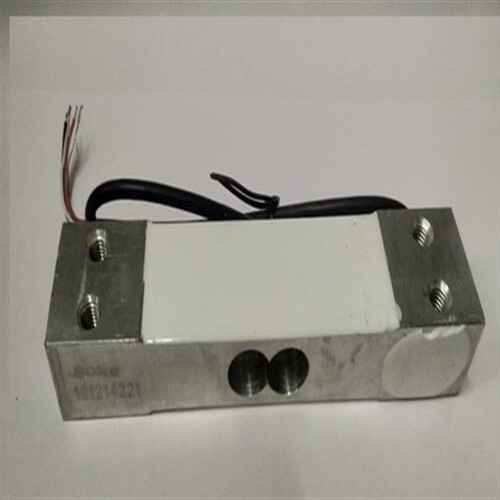

CZL-601D 40 KG Load Cell

Name: CZL-601D 40 KG Load Cell
Brand: SIMANDHAR TECHNOLOGY
Price: 300 INR
Availability: InStock

Price 300 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CZL-601D 40 KG Load Cell Specification

Usage
Weight Measurement in Electronic Scales

IP Rating
IP65

Function
Force and Weight Sensing

Automatic Grade
Manual/Automatic (Dependent on Application)

Features
Compact, High Accuracy, Easy Installation, Temperature Compensated

Power Source
Electric

Application
Weighing Equipment, Industrial Scales, Electronic Counting Scales, Retail Scales

Connectivity Type
4-Wire Connection

Interface
Wired

Size
Length: 130 mm, Width: 32 mm, Height: 23 mm

Product Type
CZL-601 Load Cell 40 KG

Weighing Scale Type
Other

Material
Other

Power Supply
5V DC (Excitation Voltage: 5-12V DC)

Load
40 kg (Maximum Load)

Accuracy
C3 (0.02% FS standard)

Capacity Range
40 Kilograms (kg)

Color
Gray

Warranty
NO RETURN / REPLACEMENT / GURRENTY OR WARRENTY

Zero Balance
1% F.S.

Insulation Resistance
>2000 M (at 50V DC)

Operating Temperature Range
-10C to +40C

Ultimate Overload
150% of Rated Capacity

Cable Length
2 meters (Standard)

Model Number
CZL-601D

Creep (30 min)
0.02% F.S.

Input Resistance
405 10

Safe Overload
120% of Rated Capacity

Output Resistance
350 3

Rated Output
2.0 0.002 mV/V

Recommended Excitation Voltage
5-10V DC

CZL-601D 40 KG Load Cell Trade Information

Minimum Order Quantity
1 Piece

FOB Port
EX WORKS AHMEDABAD

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Packaging Details
STANDARD CORRUGATED BOX, Shipping cost will depend on location & volume

Main Domestic Market
All India

About CZL-601D 40 KG Load Cell

CZL-601 loadcell
cap : 40kg
no warranty / gurrenty / return / replacement in loadcell

Model CZL 601 (Table Top- D ) is strain gauge based LoadCell constructed from Aluminum Alloy for high Accuracy. It is mainly used in check weighing. Suitable for Pan size upto 250mm X 350mm. We are a prominent Exporter, Importer and Supplier of Load Cell Czl 601D. Load Cell (CZL-601D) is made of alloy aluminum. Load Cell (CZL-601D) is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. Load Cell (CZL-601D) is best suited for electronic table top scale, floor scale and other weighing equipment

High Accuracy and Reliability

The CZL-601D load cell ensures consistent and accurate weight measurements up to 40 kilograms, featuring a rated output of 2.0 0.002 mV/V and meeting the C3 accuracy standard (0.02% FS). Its temperature compensation and low creep characteristics maintain precision, making it ideal for sensitive weighing tasks in both industrial and commercial settings.

Versatile Installation and Applications

Compact and straightforward in design, the CZL-601D is suitable for a broad range of applications including electronic scales, industrial weighing systems, electronic counting scales, and retail weighing equipment. Its 4-wire connectivity and 2-meter standard cable facilitate easy installation, while the durable IP65-rated housing protects against dust and moisture ingress.

Robust Construction and Operational Durability

Engineered to withstand industrial conditions, the load cell supports a safe overload up to 120% and an ultimate overload up to 150% of rated capacity. With an operational temperature range from -10C to +40C and insulation resistance above 2000 M, the CZL-601D maintains dependability even under challenging circumstances.

FAQ's of CZL-601D 40 KG Load Cell:

Q: How is the CZL-601D 40 KG Load Cell installed in weighing equipment?

A: The CZL-601D can be easily integrated into weighing systems using its standard 4-wire connection. The load cell comes with a 2-meter cable for flexible mounting, and its compact dimensions allow straightforward placement in both new and existing scales. Ensure the excitation voltage is within 5-10V DC during installation.

Q: What types of applications is the CZL-601D suitable for?

A: This load cell is designed for use in electronic weighing equipment, including industrial and retail scales, electronic counting scales, and precision measurement setups. Its high accuracy and robust construction make it ideal for diverse environments in manufacturing, distribution, and retail sectors.

Q: When should the CZL-601D load cell be replaced or maintained?

A: The CZL-601D is designed for durability, but it should be inspected regularly for signs of mechanical damage or wiring wear. If measurements become inconsistent or the load cell experiences force beyond the 150% ultimate overload limit, replacement may be necessary. Note there is no warranty or return policy for this product.

Q: Where can the CZL-601D load cell be used effectively?

A: This model operates reliably in environments with temperatures from -10C to +40C and is protected against dust and moisture with an IP65 rating. It is well-suited for indoor industrial facilities, warehouses, retail outlets, and any location that requires precise weight measurement within its capacity range.

Q: What are the main benefits of using the CZL-601D load cell?

A: The CZL-601D offers high measurement accuracy, stable output, and reliability under various operating conditions. Its temperature compensation, low creep, and robust construction enhance weighing consistency, making it valuable for demanding commercial and industrial applications.

Q: How does the load cell ensure measurement precision over time?

A: The CZL-601D is temperature compensated to stabilize readings in changing environments and has low creep (0.02% F.S. over 30 minutes), minimizing drift during sustained use. Regular calibration with proper excitation voltage sustains its precise performance.
