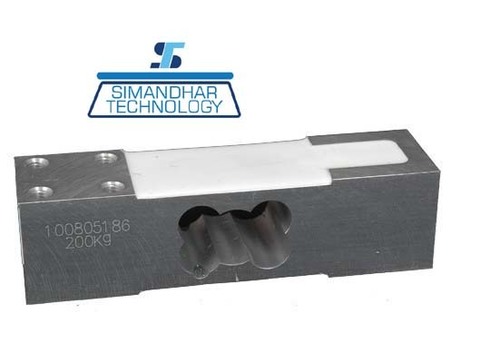

642 D 25X25 Aluminum Load Cell 100/200/300/500 Kg

400 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP65
Interface Wired
Automatic Grade Automatic
Size 25 x 25 mm
Features High Sensitivity, Corrosion Resistant, Compensated Temperature Effect
Function Weight Measurement
Display Type Digital
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

642 D 25X25 Aluminum Load Cell 100/200/300/500 Kg Price And Quantity

Minimum Order Quantity 1 Piece
Price 400 INR/Piece

Safe Overload 150% of Rated Capacity
Ultimate Overload 200% of Rated Capacity
Construction Single Point, Low Profile
Temperature Compensated Range -10C to +40C
Maximum Excitation Voltage 15V DC
Cable Length 2 meters
Output Sensitivity 2.0 mV/V 0.2mV/V
Output Resistance 3503
Operating Temperature Range -20C to +55C
Creep (30 min) 0.02% F.S.
Surface Finish Anodized
Model Number 642 D 25X25
Input Resistance 4056
Recommended Excitation Voltage 10V DC
Insulation Resistance >2000 M (50VDC)

642 D 25X25 Aluminum Load Cell 100/200/300/500 Kg Product Specifications

Function Weight Measurement
Material Plastic
Automatic Grade Automatic
Size 25 x 25 mm
Interface Wired
Features High Sensitivity, Corrosion Resistant, Compensated Temperature Effect
Weighing Scale Type Other
IP Rating IP65
Capacity Range 100/200/300/500 Kg Kilograms (kg)
Monitor Display Digital
Load 100/200/300/500 Kg
Product Type loadcell
Accuracy 0.02% F.S.
Color any
Power Source Electric
Application Platform Scale, Bench Scale, Industrial Weighing
Warranty NO RETURN / REPLACEMENT / GURRENTY OR WARRENTY
Battery Life Dependent on Indicator used
Usage Industrial/Commercial Scale
Power Supply 10-12V DC
Display Type Digital
Connectivity Type Cable

Safe Overload 150% of Rated Capacity
Ultimate Overload 200% of Rated Capacity
Construction Single Point, Low Profile
Temperature Compensated Range -10C to +40C
Maximum Excitation Voltage 15V DC
Cable Length 2 meters
Output Sensitivity 2.0 mV/V 0.2mV/V
Output Resistance 3503
Operating Temperature Range -20C to +55C
Creep (30 min) 0.02% F.S.
Surface Finish Anodized
Model Number 642 D 25X25
Input Resistance 4056
Recommended Excitation Voltage 10V DC
Insulation Resistance >2000 M (50VDC)

642 D 25X25 Aluminum Load Cell 100/200/300/500 Kg Trade Information

FOB Port EX WORKS AHMEDABAD
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 5 Days
Packaging Details Shipping Cost Will Depend on Location & Volume of Parcel Carton Box
Main Domestic Market All India

Product Description

We are one of the prominent firms in the market engaged in manufacturing, exporting and supplying optimum collection of Weighing Machine Load Cells. Our offered load cells are manufactured by our dexterous professionals with the help of quality assured raw material and innovative technology in adherence to set industry standards. These load cells are rigorously checked against various parameters by the quality experts to ensure their premium quality. Furthermore, our esteemed customers can purchase these load cells from us at most affordable prices.

Superior Sensitivity and Durability

The 642 D 25X25 Load Cell offers high sensitivity with an output of 2.0 mV/V and outstanding durability thanks to its anodized aluminum construction. Its IP65 rating ensures protection from dust and water, making it suitable for demanding industrial environments. Corrosion resistance further enhances longevity, while the compact form factor fits a range of scale platforms.

Precision for Industrial Applications

Engineered for accuracy (0.02% F.S.), this load cell ensures consistent weight measurement even under fluctuating conditions. Temperature compensation technology maintains performance across environments, while the device supports wide-ranging capacities from 100 kg to 500 kg, serving various industrial requirements.

Flexible Integration and Easy Setup

With a 2-meter cable and digital interface, the load cell is easily integrated into a range of weight measurement systems. It is suitable for platform and bench scales, supporting industrial, commercial, and laboratory usage. Its automatic operation and low-profile design streamline installation and daily operation.

FAQ's of 642 D 25X25 Aluminum Load Cell 100/200/300/500 Kg:

Q: How is the 642 D 25X25 Aluminum Load Cell typically installed and connected?

A: This load cell features a 2-meter cable and a single-point, low-profile design that allows for straightforward mounting onto platform or bench scales. Connection is via wired interface, and it supports most digital indicators that accept a 2.0 mV/V input and a 10-15V DC excitation voltage.

Q: What are the main benefits of using this load cell in industrial weighing applications?

A: Key benefits include high measurement accuracy (0.02% F.S.), corrosion resistance, wide operating temperature range, and robust overload protection up to 200% of rated capacity. Its IP65 rating enhances reliability by safeguarding against dust and water ingress.

Q: When should I consider the creep specification in my application?

A: The creep of 0.02% F.S. (over 30 minutes) ensures stable weight readings are maintained during prolonged load. This is crucial in processes where items remain on the scale for extended periods, ensuring accuracy and consistency.

Q: What is the process for calibrating the 642 D 25X25 Load Cell?

A: Calibration involves connecting the load cell to an appropriate digital indicator and following the instrument's calibration routine. Typically, known weights are applied to the scale, and the readings are adjusted to match the actual values as specified in the indicator's manual.

Q: Where can this load cell be best applied?

A: The 642 D 25X25 is ideal for platform scales, bench scales, and a variety of industrial weighing systems in environments where space, accuracy, and durability are important, such as factories or commercial warehouses.

Q: Does the load cell come with a warranty or replacement guarantee?

A: No, this model is offered without any return, replacement, guarantee, or warranty, so ensure suitability prior to purchasing based on your application requirements.
